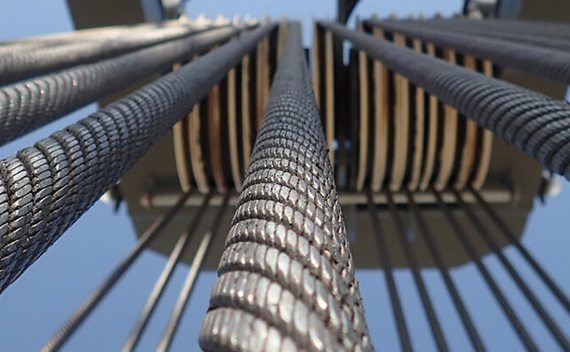

Due to our honest business standards and transparent deals, we are steadily making our way to the platform of success by offering a superior grade range of Material Handling. The offered rope is procured from trusted vendors in the market and sophisticated machines in compliance with set industry standards. This rope is strictly checked on different quality parameters assuring its flawlessness at the user’s end.
Max. Safe Working Load in kg for Single part Slings |
|||
Min. Rope size |
Vertical Lift |
Basket Lift |
Choker Lift |
mm |
kg |
kg |
kg |
3 |
70 |
140 |
50 |
4 |
130 |
260 |
100 |
5 |
200 |
400 |
150 |
6 |
250 |
500 |
190 |
8 |
550 |
1100 |
410 |
9 |
670 |
1340 |
500 |
10 |
800 |
1600 |
600 |
11 |
1000 |
2000 |
750 |
12 |
1200 |
2400 |
900 |
13 |
1400 |
2800 |
1050 |
14 |
1750 |
3500 |
1300 |
16 |
2000 |
4000 |
1500 |
18 |
2500 |
5000 |
1875 |
19 |
3000 |
6000 |
2250 |
20 |
3300 |
6600 |
2250 |
22 |
4000 |
8000 |
3000 |
24 |
4600 |
9200 |
3450 |
25 |
5000 |
10000 |
3750 |
29 |
6500 |
13000 |
4875 |
32 |
8000 |
16000 |
6000 |
35 |
9200 |
18400 |
6900 |
36 |
10400 |
20800 |
7800 |
38 |
12000 |
24000 |
9000 |
40 |
12700 |
25400 |
9525 |
44 |
16700 |
33400 |
12525 |
48 |
20000 |
40000 |
15000 |
52 |
23000 |
46000 |
17250 |

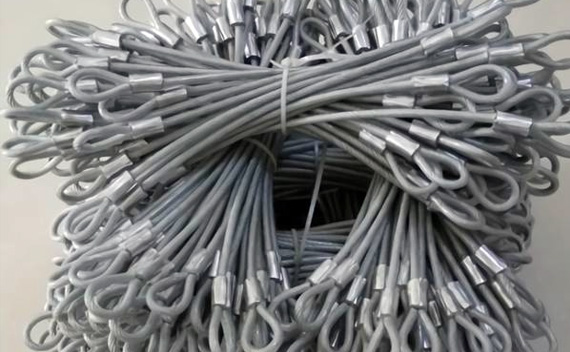

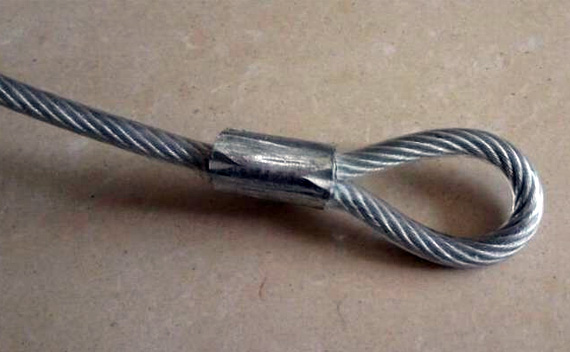

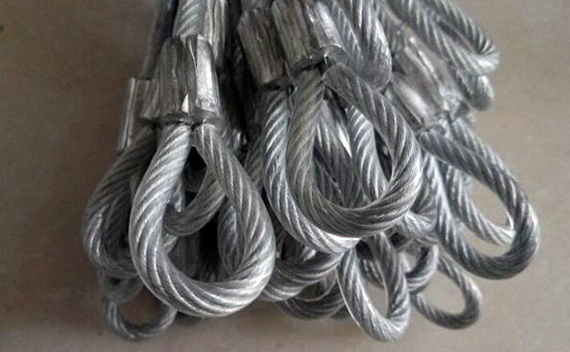

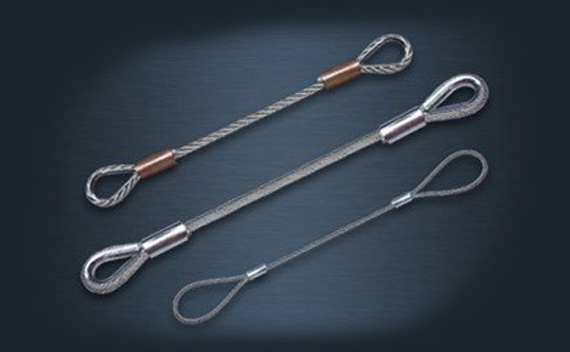

Pressed Steel wire rope slings.
Pressed steel twisted wire rope slings.
Spliced steel wire rope slings.
Cast slings bind slings nontie steel wire rope slings.
Range 5 mm to 52 mm Diameter.

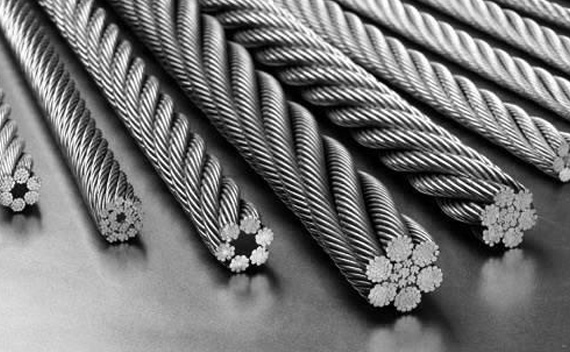

Wire Rope Lay:- What is a wire rope... consists of a Number a wire stands formed helically about a central axis in some cases, a single is rope.
Nom. Dia |
Mass 6 x 19 & kg / 100 Mtrs. |
Mass 6 x 19 S6 x 19F kg / 100 Mtrs. |
||
MM |
FMC |
IWRC |
FMC |
IWRC |
5 |
8.65 |
9.52 |
- |
- |
6 |
12.5 |
13.7 |
- |
- |
8 |
22.1 |
24.4 |
24.3 |
26 |
9 |
28.0 |
30.8 |
30.8 |
33 |
10 |
34.6 |
38.1 |
38.0 |
41 |
11 |
41.9 |
46.1 |
46.0 |
50 |
12 |
49.8 |
54.8 |
54.7 |
60 |
13 |
58.5 |
64.4 |
64.3 |
70 |
14 |
67.6 |
74.6 |
74.5 |
82 |
15 |
77.8 |
85.8 |
85.5 |
94 |
16 |
88.6 |
97.4 |
97.3 |
107 |
17 |
100 |
110 |
110 |
121 |
19 |
112 |
123 |
123 |
139 |
19 |
125 |
13 |
137 |
151 |
20 |
138 |
152 |
152 |
167 |
22 |
167 |
184 |
184 |
202 |
24 |
199 |
219 |
219 |
241 |
25 |
216 |
238 |
238 |
261 |
26 |
234 |
257 |
257 |
283 |
28 |
271 |
298 |
298 |
328 |
29 |
291 |
320 |
320 |
352 |
30 |
312 |
343 |
342 |
376 |
32 |
354 |
390 |
389 |
428 |
34 |
400 |
440 |
440 |
484 |
35 |
424 |
466 |
466 |
512 |
36 |
448 |
493 |
493 |
542 |
38 |
500 |
550 |
549 |
604 |
40 |
554 |
609 |
608 |
669 |
42 |
611 |
672 |
670 |
738 |
44 |
670 |
737 |
736 |
810 |
46 |
733 |
805 |
805 |
885 |
48 |
798 |
877 |
876 |
964 |
50 |
865 |
951 |
950 |
1046 |
52 |
936 |
1029 |
1028 |
1131 |

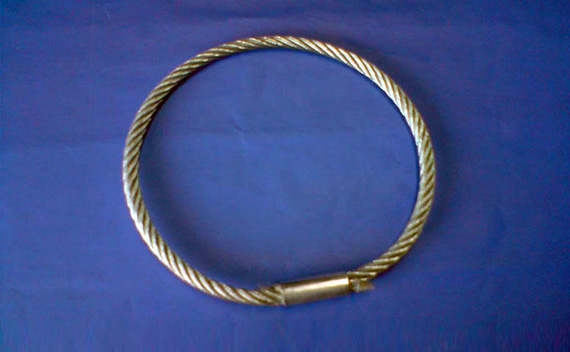

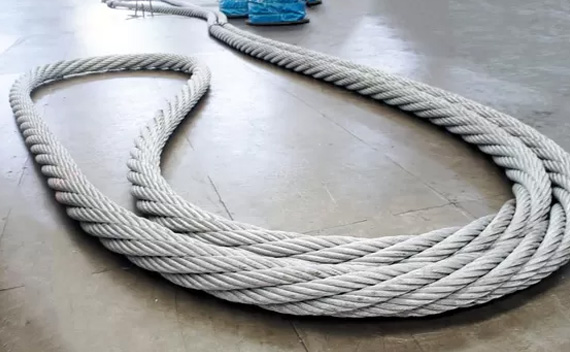

We hold expertise in offering our clients a distinct range of Endless Rope Slings. Obtained from the vendors of high reputation which ensures quality offerings of this product. Our efficient distribution channel help us to provide this product in most effective prices due in stipulated period of time-frame.
Max. Safe Working Load in kg for Double part Slings |
|||
Min. Rope size |
Vertical Lift |
Basket Lift |
Choker Lift |
mm |
kg |
kg |
kg |
3 |
140 |
280 |
100 |
4 |
260 |
520 |
200 |
5 |
400 |
800 |
300 |
6 |
500 |
1000 |
380 |
8 |
1100 |
2200 |
820 |
9 |
1340 |
2680 |
1000 |
10 |
1600 |
3200 |
1200 |
11 |
2000 |
4000 |
1500 |
12 |
2400 |
4800 |
1800 |
13 |
2800 |
5600 |
2100 |
14 |
3500 |
7000 |
2600 |
16 |
4000 |
8000 |
3000 |
18 |
5000 |
10000 |
3750 |
19 |
6000 |
12000 |
4500 |
20 |
6600 |
13200 |
4950 |
22 |
8000 |
16000 |
6000 |
24 |
9200 |
18400 |
6900 |
25 |
10000 |
20000 |
7500 |
29 |
13000 |
26000 |
9750 |
32 |
16000 |
32000 |
12000 |
35 |
16400 |
32800 |
13800 |
36 |
20800 |
41600 |
15600 |
38 |
24000 |
48000 |
18000 |
40 |
25400 |
50800 |
19050 |
44 |
33400 |
66800 |
25050 |
48 |
40000 |
80000 |
30000 |
52 |
46000 |
92000 |
34500 |
