Pressure Switch - Standard
PI-S101
Commercial pressure switch
Pressure Switch - Standard
- Repeatability :± 2% F.S.
- Sensing Elements :Phosphor Bronze Bellow
- Switch :1 SPDT, 15A,220 VAC / 10A,24 VDC
- Mounting :Bottom / Panel
- Enclosure Material :Steel (plated) with Plastic cover
PI-S102
Weatherproof pressure switch, adjustable differential
Pressure Switch - Standard
- Repeatability :± 2% F.S.
- Sensing Elements :Phosphor Bronze / Stainless Steel Bellows
- Switch :1 SPDT, 15A,220 VAC / 10A,24 VDC
- Mounting :Bottom / Panel
PI-S103
Miniature pressure switch
Pressure Switch - Standard
- Repeatability :± 2% F.S.
- Sensing Elements :SS Diaphragm
- Switch :1 SPST, 5A,220 VAC / 10A,24 VDC
- Mounting :Direct
- Enclosure Material :Stainless Steel

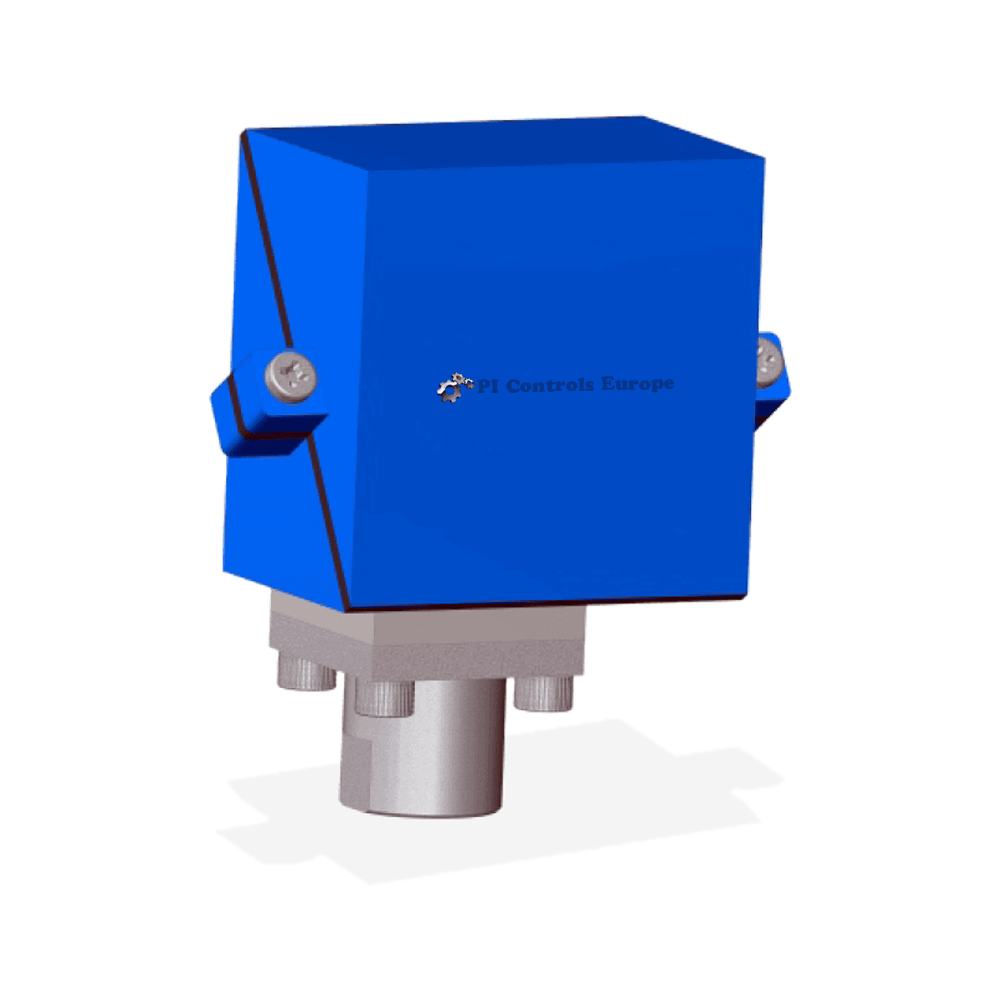

PI-S104
Miniature pressure switch, internal adjustment
Pressure Switch - Standard
- Repeatability :± 1% F.S.
- Sensing Elements :SS 316 Diaphragm
- Switch :1 SPDT, 5A,250 VAC / 0.2A,24 VDC
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast

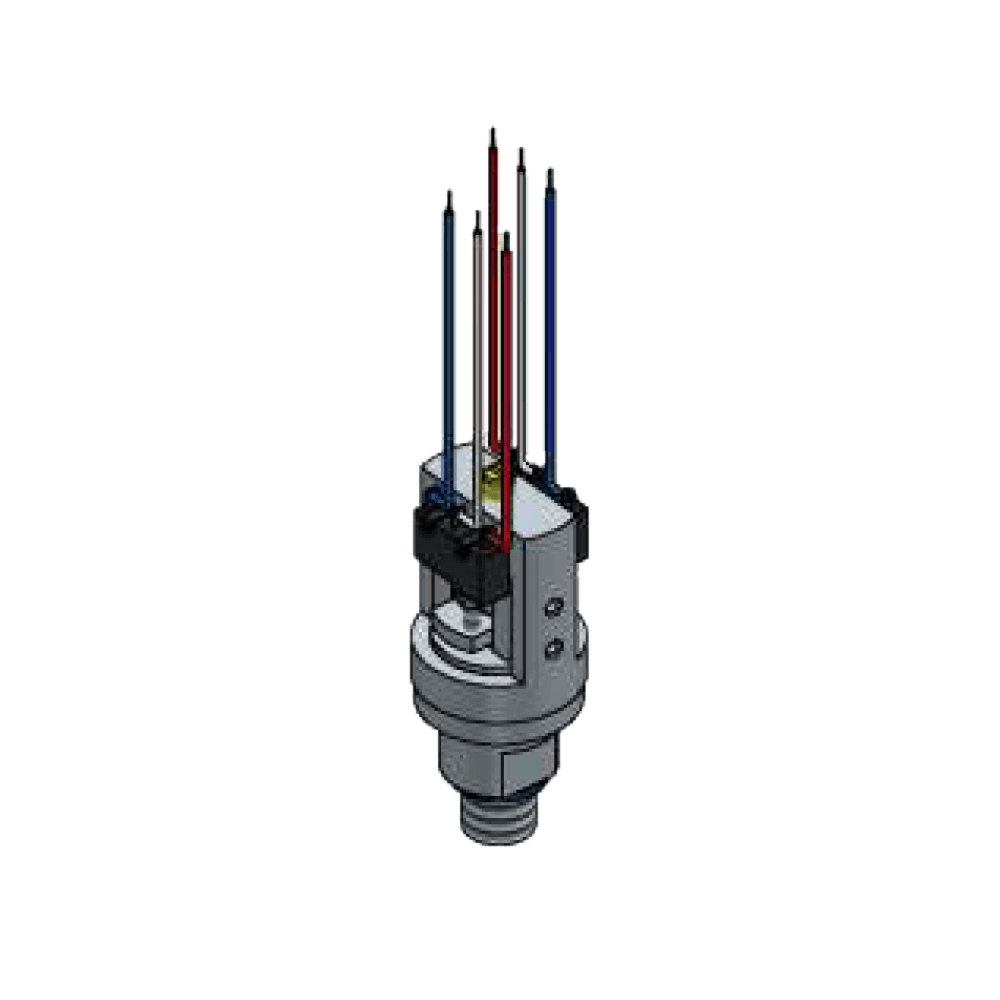

PI-S105
Miniature pressure switch, OEM industry
Pressure Switch - Standard
- Repeatability :± 1% F.S.
- Sensing Elements :SS Diaphragm
- Switch :1 or 2 SPDT, 5A,220 VAC / 10A,24 VDC
- Mounting :Direct
- Enclosure Material :Stainless Steel
Pressure Switch - Weather proof series
PI-S201
Weatherproof pressure switch, high accuracy & repeatability type
Pressure Switch - Weather proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel

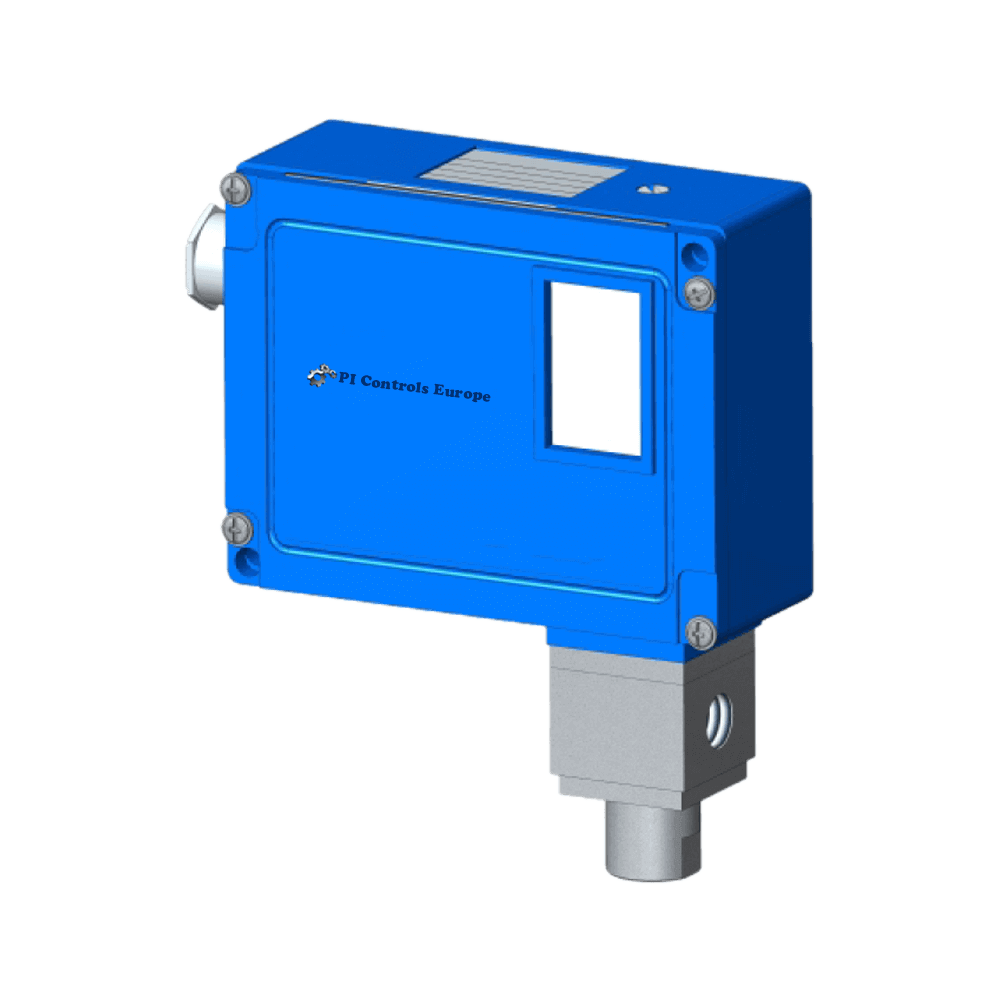

PI-S202
Differential pressure switch
Pressure Switch - Weather proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast

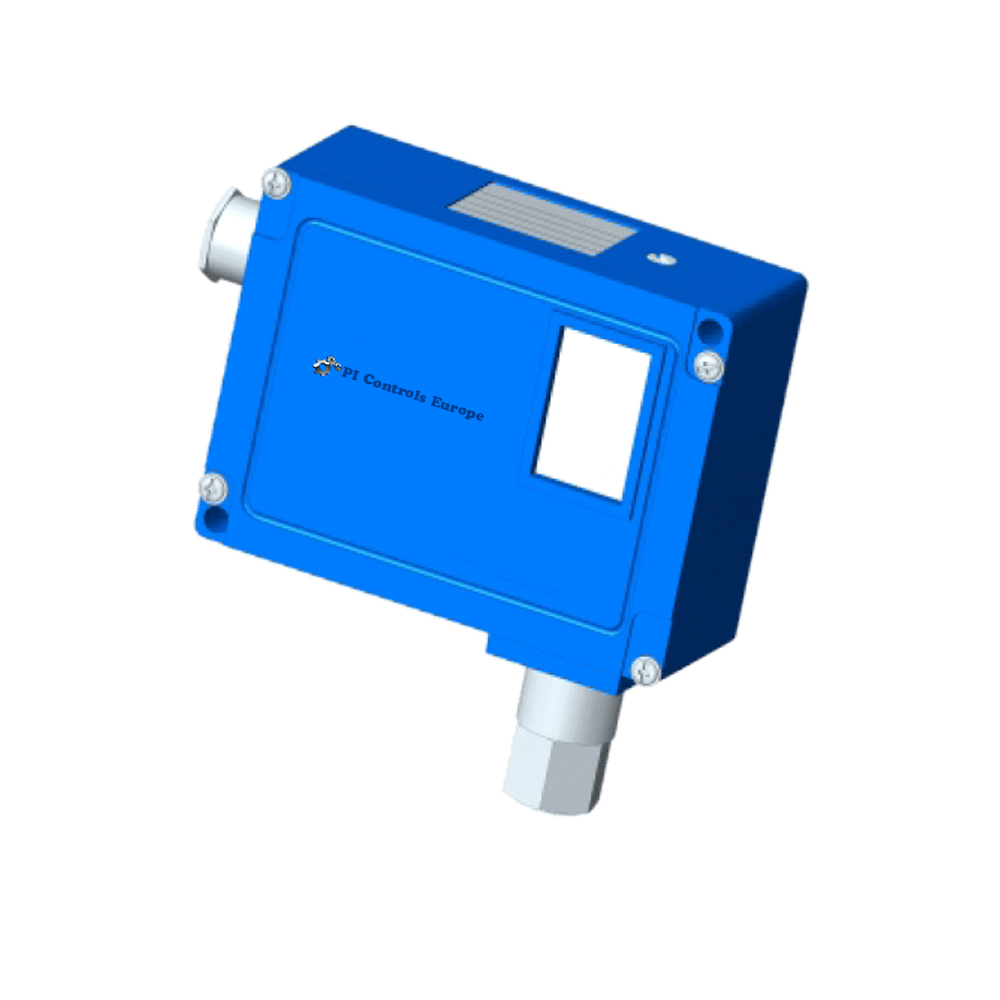

PI-S203
High pressure switch
Pressure Switch - Weather proof series
- Repeatability :± 1% F.S.
- Sensing Elements :AISI 316 SS, Piston
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast
Pressure Switch - Flame proof series
PI-S301
Flame proof pressure switch, high accuracy & repeatability
Pressure Switch - Flame proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
PI-S302
Flame proof differential pressure switch
Pressure Switch - Flame proof series
- Repeatability :± 0.5% F.S.
- Sensing Elements :AISI 316 SS, Diaphragm
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Standard)
- Mounting :Bottom / Panel

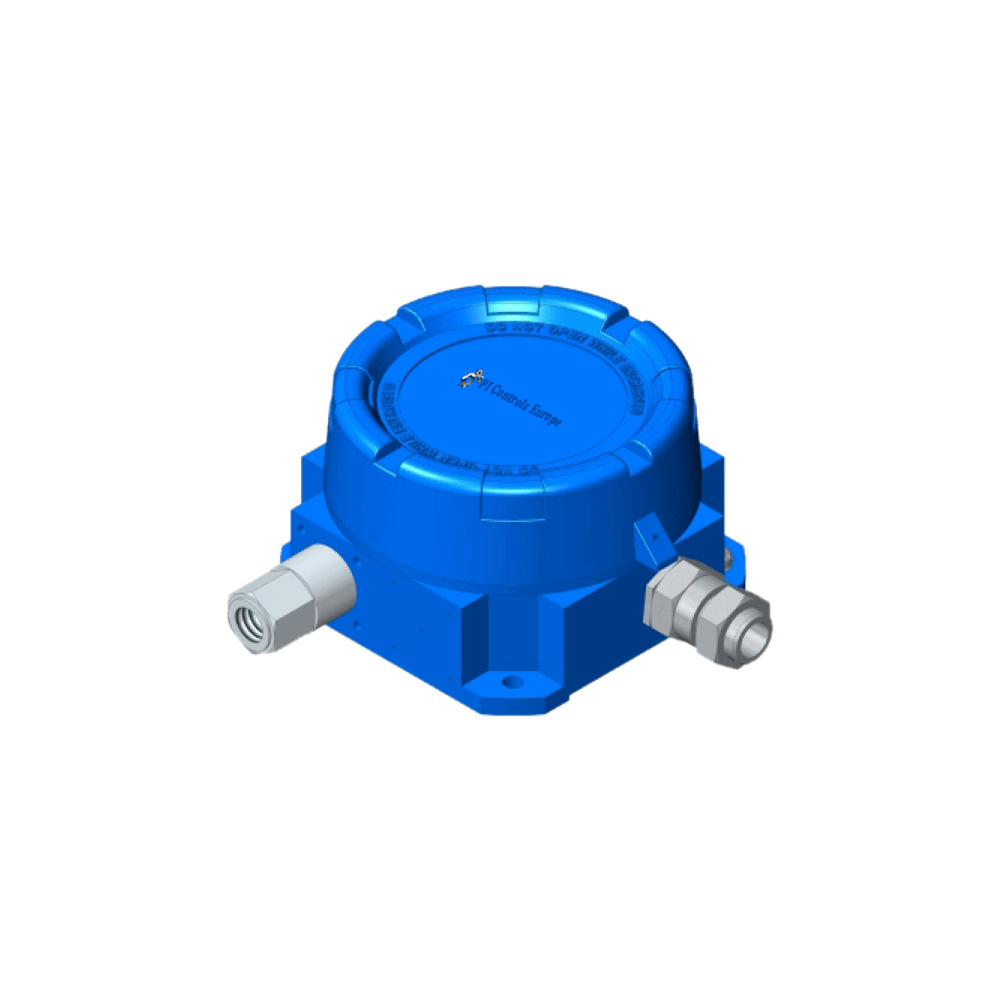

PI-S303
Flame proof high pressure switch
Pressure Switch - Flame proof series
- Repeatability :± 1% F.S.
- Sensing Elements :AISI 316 SS, Piston
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Bottom / Panel
- Enclosure Material :Aluminum pressure die cast
Temperature Switches
Temperature - Switches - Gas filled systems
PI-T703
PI Controls Europe - Industrial thermometer, with electrical contact
Switches - Gas filled systems
- Dial size :DN100/DN150
- Range :-100…800°C
- Stem size :6.0 mm to 12 mm
- Assembly :Direct or Remote

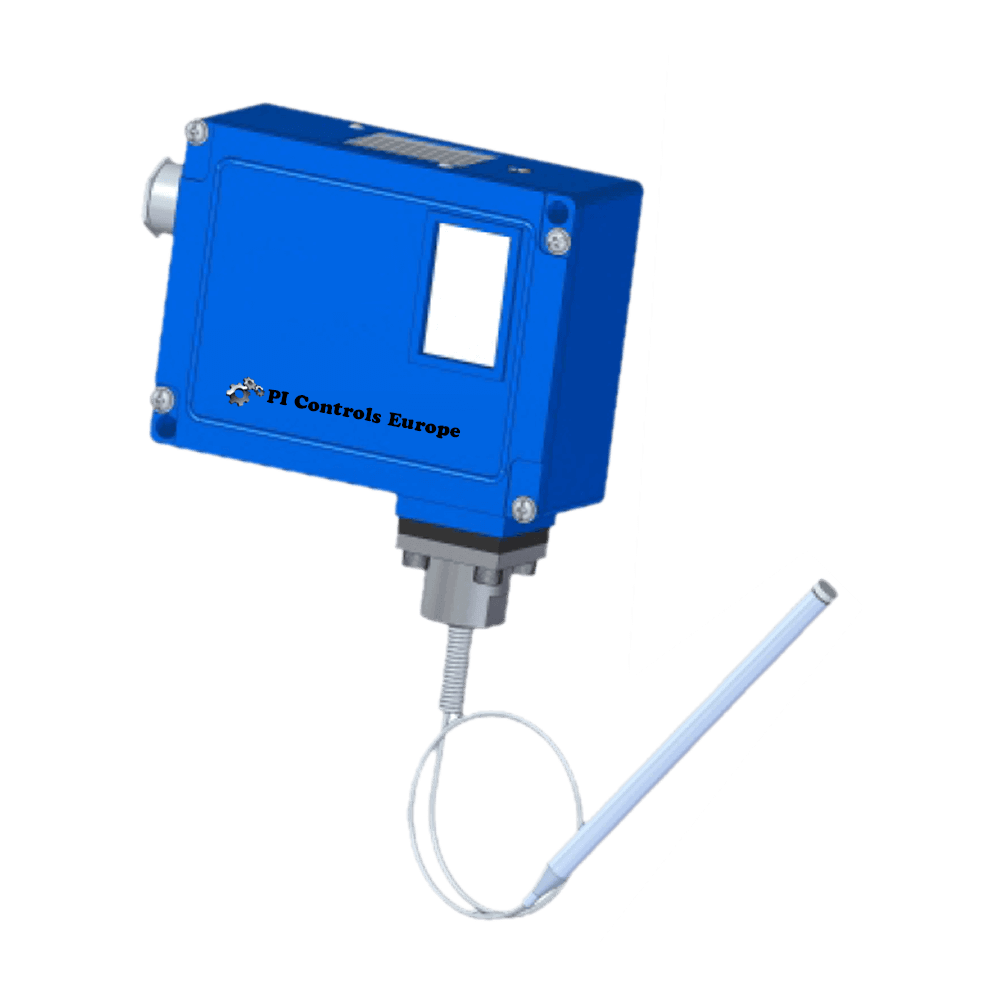

PI-T704
PI Controls Europe - Temperature switch, weatherproof
Switches - Gas filled systems
- Repeatability :± 2% F.S.
- Sensing Elements :AISI 316 SS
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Direct / Remote

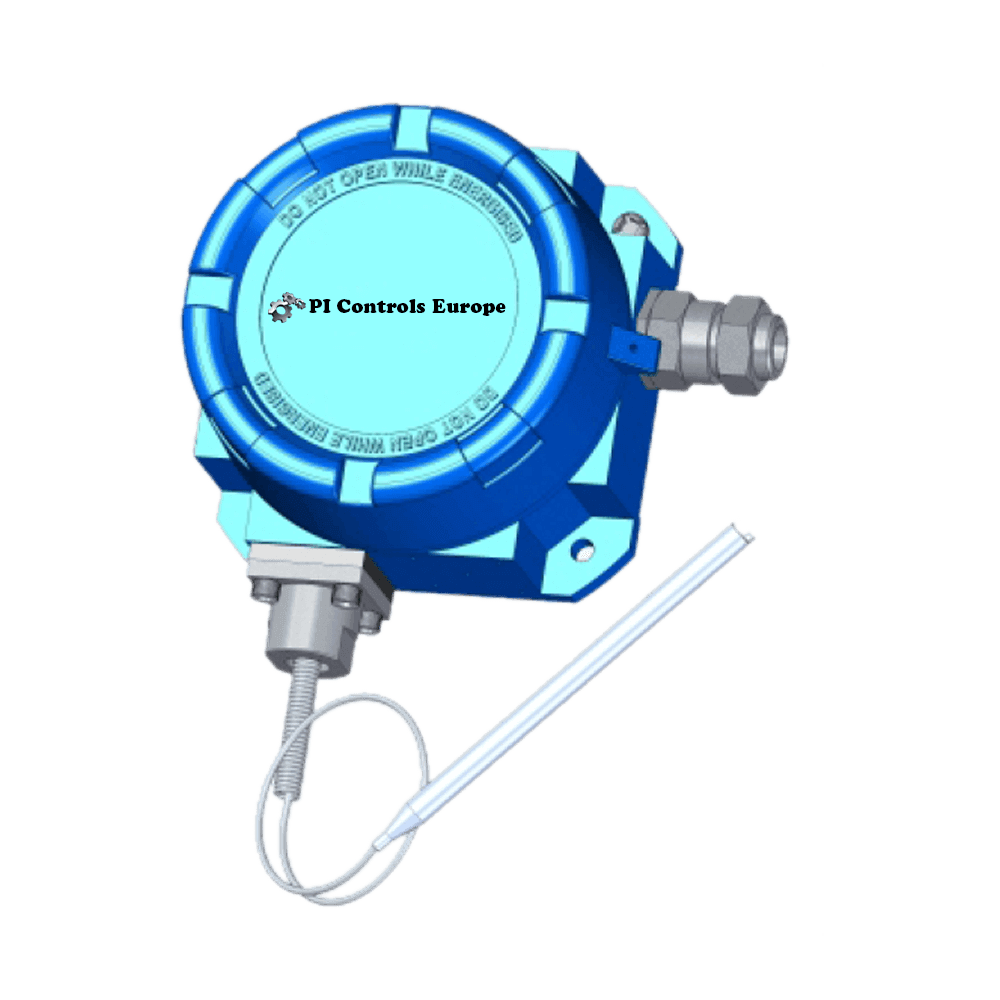

PI-T705
PI Controls Europe - Temperature switch, ex-proof
Switches - Gas filled systems
- Repeatability :± 2% F.S.
- Sensing Elements :AISI 316 SS
- Switch :1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)
- Mounting :Direct / Remote

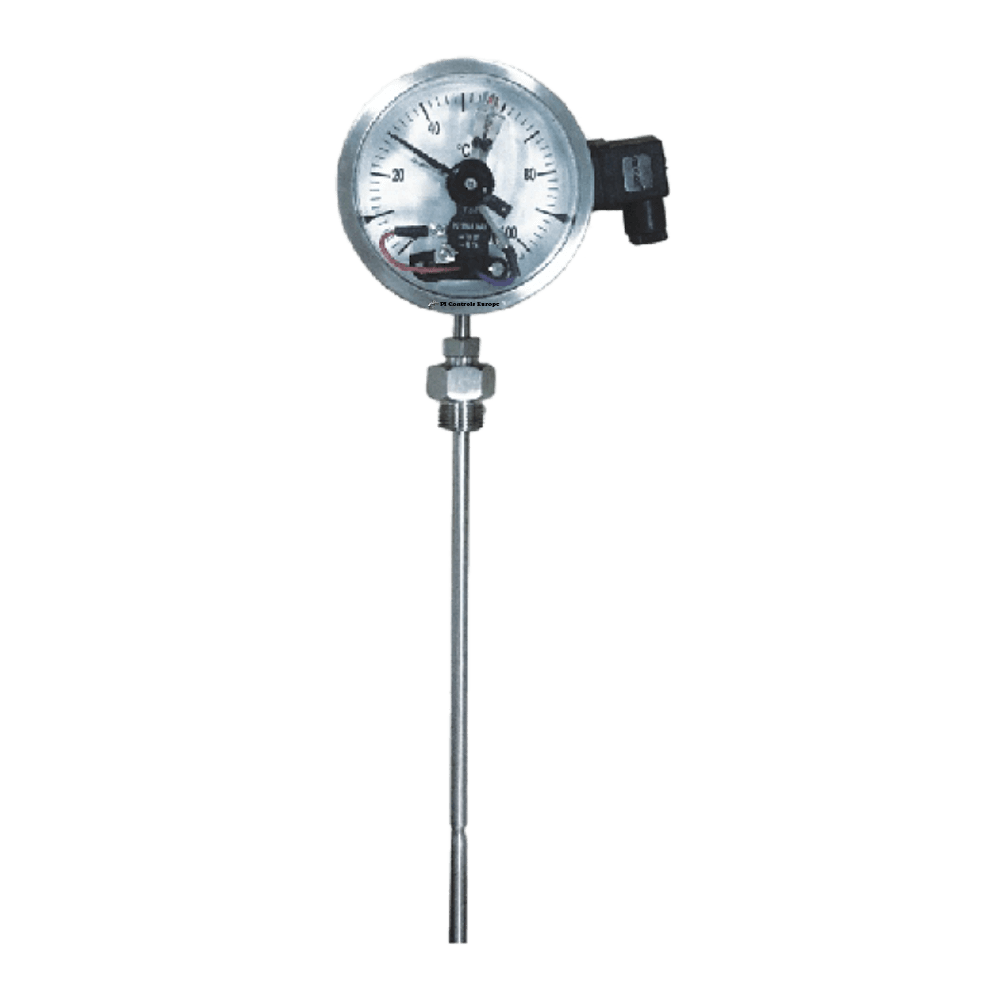

PI-T708
PI Controls Europe - Industrial thermometer, with electrical contact, Dome style
Switches - Gas filled systems
- Dial size :DN100 / DN150
- Range :-100…800°C
- Stem size :6.0 mm to 12 mm
- Assembly :Direct or Remote
